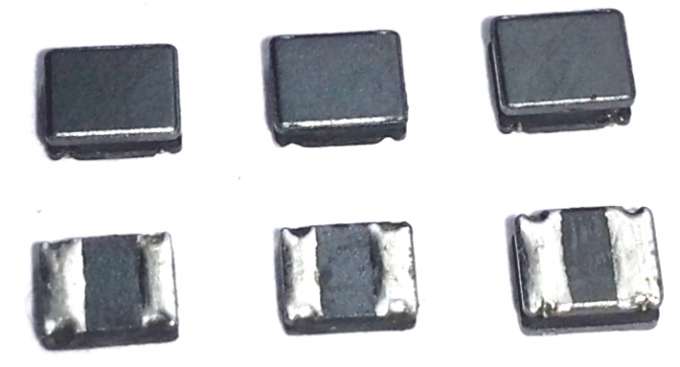

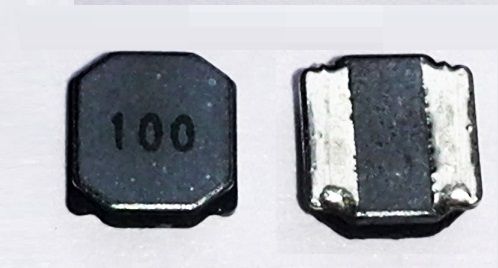

贴片功率电感
CKNR Series
Features特 点 Small size, highly thin,larger saturation current,Low DCR,Low power consumption,Lower flux leakage 尺寸小 , 超薄形电感器 , 大电流 , 小电阻 , 功耗低 , 漏磁低 Applications 应用 Widely use in Mobile phone
详情介绍
| Features 特点 |
| Small size, highly thin,larger saturation current,Low DCR,Low power consumption,Lower flux leakage |
| 尺寸小,超薄形电感器,大电流,小电阻,功耗低,漏磁低 |
| Applications 应用 |
| Widely use in Mobile phone quick charging, Tablet PC, Digital camera,LCD TV, Notebook PC, PDA etc. |
| 应用于移动通信设备，移动电话快充, 液晶显示器、笔记本电脑、平板电视,掌上PC、数码相机等 |
| Description 说明 |
| The maximum rated current is a DC current which causes initial inductance to decrease by 35% or |
| temperature to rise by 40°C, which is smaller (at ambient reference temperature: 20°C). |
| 额定电流，基于电感量最大下降幅35%或者温度上升至40度时,取相对较小的数据 |
| (一般测试数据基于环境温度20°C) |
|
Test Condition/测试条件: 100KHz/1V ; 1MHz/1V
|
